T-Shaped Seat Slide Rail Assembly
Product Parameters
|
Parameter |
Specification |
|
Product Type |
T-section seat slide rail assembly |
|
Structure |
T-rail guidance with sliding mechanism |
|
Adjustment Direction |
Guides seat fore-aft sliding |
|
Mounting Method |
Fixed by vehicle hole positions, customizable |
|
Customization |
Customized per technical drawings or samples |
Product Overview

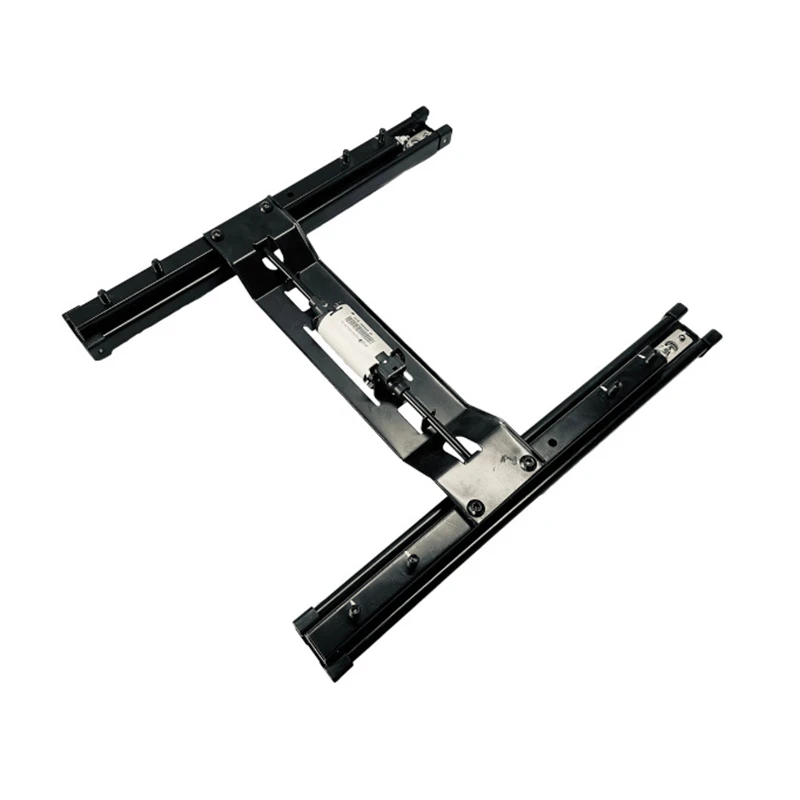

The T-Shaped Seat Slide Rail Assembly uses a T-section rail as the guiding structure; together with the sliding mechanism it carries the seat and guides its fore-aft movement. It is the mechanical guide component for seat horizontal displacement, used in complete-vehicle seat matching, modification and repair replacement.
Core Advantages
The T-section rail provides stable guiding fit; sliding follows the fixed track with clear alignment, easy to interface with the actuator. Advantage
As a mechanical guide assembly used with the electric actuator, it carries the seat and constrains sliding direction; replacement matches by rail specification.
Rail length, hole positions and connection method can be customized by vehicle; sampling and batch production are completed from drawings or samples.
Application Scenarios Scenario
Rail guidance matching for fore-aft sliding of complete-vehicle seats.
Replacing worn or deformed T-shaped slide rails in modified seats.
Replacement of jamming rails through repair channels.
OEM/ODM OEM/ODM customization and private labeling are supported; rail length, section fit and mounting holes are adjusted per drawings or samples under confidential production. Dimensions and sliding feel are confirmed on the pre-production sample before mass production; standard non-standard samples take about one month and special structures about 2-3 months, with the custom mold fee deductible against bulk orders.
Quality Control The factory is certified to ISO 9001, IATF 16949, ISO environmental management system and RoHS. For rail products, focus is on the parallel fit of the two rails, section dimensions and consistency of mounting holes; optical sorting and imaging measurement control dimensional deviation, and smooth sliding without obvious jamming is checked before dispatch. Incoming and in-process inspections are staged; premium and custom orders undergo 100% inspection before packing to ensure dimensional interchangeability, and key characteristics are managed under APQP, PPAP, FMEA and SPC.
Packaging & Delivery
Rails are long-bar items, bundled with protective sleeves at both ends; the surface is wrapped against moisture and rust before cartoning to avoid handling scratches and hole impact. Long items use extended cartons or edge reinforcement; bulk quantities are palletized and stretch-wrapped, and outer cartons carry marks, batch number and piece count. EXW, FOB, CIF and CFR are supported, with progress shared through photos and videos. Standard orders take about one week and bulk orders about one month; after sample approval, custom parts deliver in 10-15 working days (simple) or 20-30 working days (complex).
FAQ
Q1: Can you supply only rails and build tooling from my drawings?
A: Yes. Technical drawings are disassembled and evaluated, tooling and samples are made, and mass production follows confirmed dimensions and fit.
Q2: How long is the warranty?
A: Under normal use, the warranty is 12 months; material or workmanship defects are replaced or reshipped free of charge.
Q3: How is damaged arrival handled?
A: Verified by damage photos and logistics proof, we provide free reshipment, replacement or negotiated compensation.
