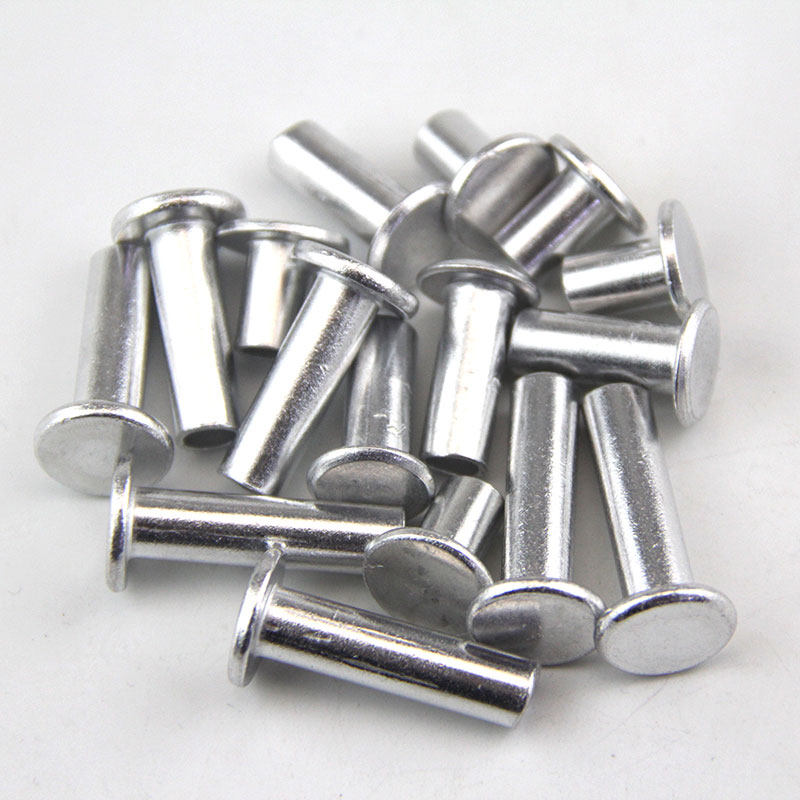

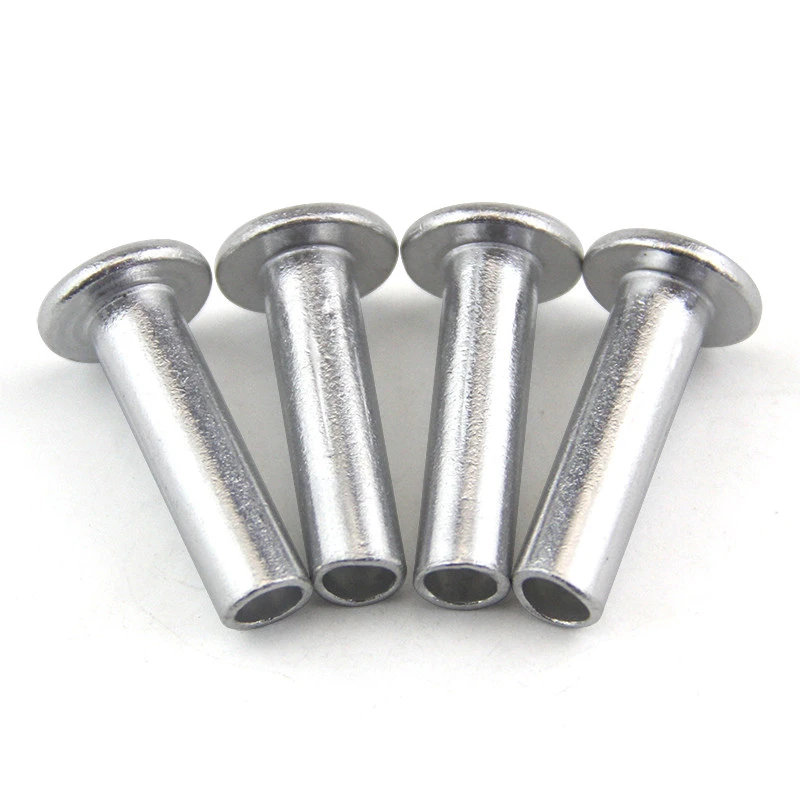

Semi-tubular Rivet

Our semi-tubular rivet has a solid head and a hollow tail. This design gives you the strength of a solid rivet and the easy installation of a hollow one. The solid head takes high shear forces. The hollow tail rolls into a strong lock. You find these rivets in car door lock mechanisms, motorcycle brake pads, farm tool blades, and power tool switches. A garden shear maker came to us. His shear rivet joint took heavy force. A full hollow rivet was not strong enough and would deform. A full solid rivet was too heavy. We recommended the product. The solid head took the shear force. The hollow tail rolled easily to lock. His shears now pass 20,000 open-close tests. He has made the semi-tubular rivet his standard. Our factory has a full set of test equipment. We have an optical sorter, hardness tester, salt spray chamber, tensile tester, and torque tester. We check every performance. You get exactly what you need.

Hollow depth of our semi-tubular rivet can be made to your request. Common depth is 1.5 to 2 times the diameter. After rolling, the outer diameter is 1.2 to 1.5 times larger than the shaft. We follow auto industry standard QC/T 518-2017. Preload loss is less than 10%. Fatigue test exceeds 1.2 million cycles. Our salt spray test is strict. Stainless steel parts last over 240 hours. Coated carbon steel parts last over 200 hours. Rust is not a problem. We also check hardness per batch. It stays between HV220 and 280. This is the best range for use.
