Phil Pan Head Screw

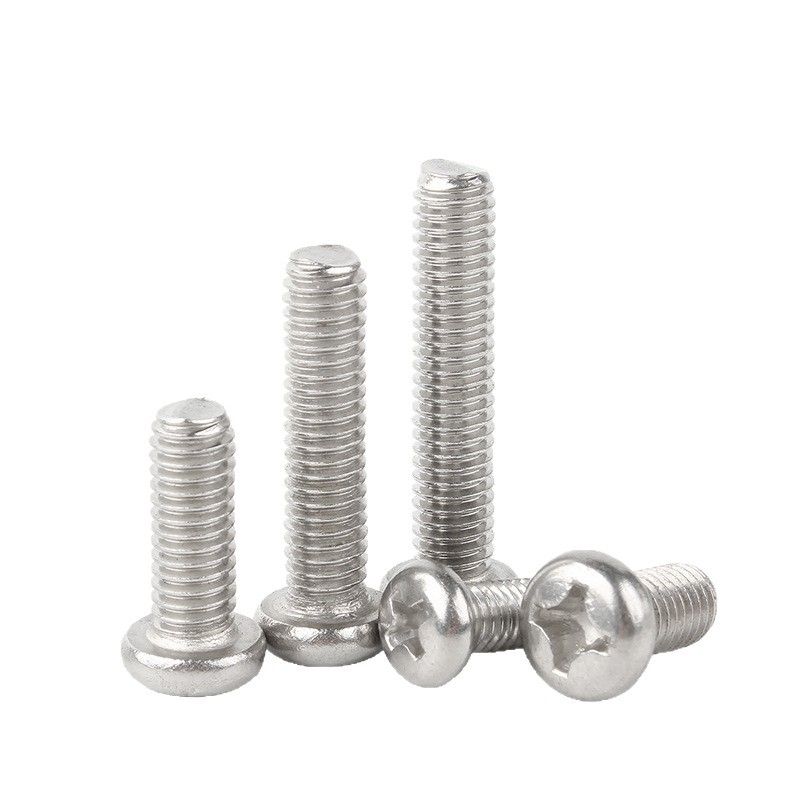

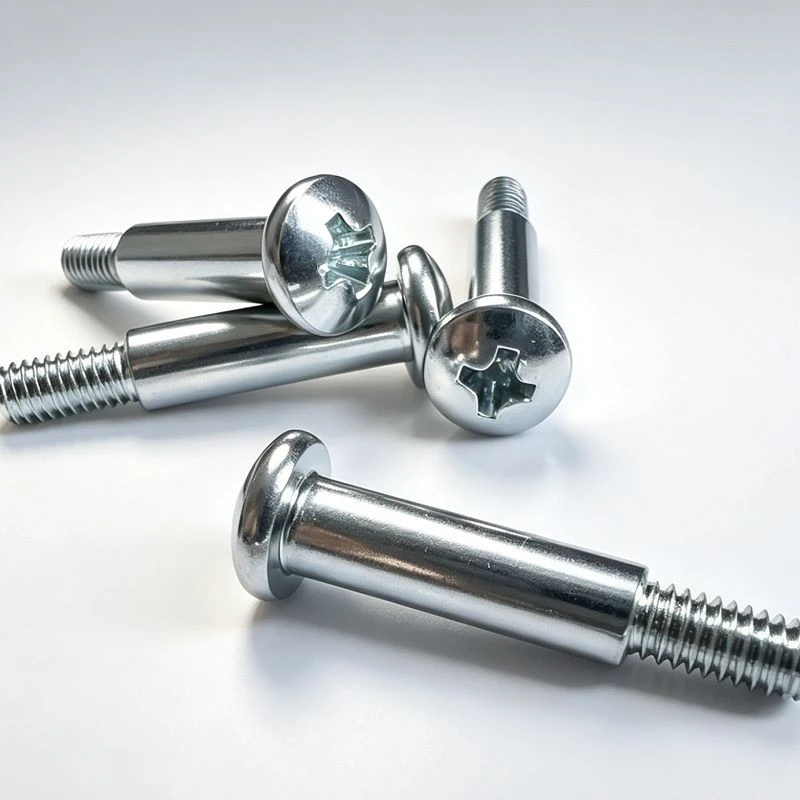

The phil pan head screw has a round, flat top. It sits higher than a countersunk screw but lower than a round-head screw. The wide head spreads pressure over a large area, preventing cracks in plastic and thin metal parts. A car door panel manufacturer faced a problem: their plastic panels cracked when using countersunk screws. They switched to our phil pan head screw. The wide head reduced pressure, eliminating cracks. Today, they purchase over 3 million pieces every year. Our factory produces 1.5 million screws per day. We hold IATF16949 certification, and our quality system is comprehensive and strict.

Diameters range from φ2 to 10 mm, with lengths from 4 to 40 mm. Materials include 10B21, 35#, 45# steel, SUS304, and SUS430. Surface finishes include zinc, nickel, chrome, Dacromet, phosphate, passivation, and black oxide. The pan head diameter is 1.5 to 2 times the thread diameter, and the head height is 0.3 to 0.4 times the head diameter. Cross-recess depth and width follow national standards. Thread tolerance is 6g, and all screws are 100% checked with go/no-go gauges. Every screw drives smoothly. For grade 8.8 screws, tensile strength is at least 800 MPa, yield strength at least 640 MPa, and hardness HRC 22–32. Daily salt spray tests and wedge load tests ensure the screw head stays intact. Breakage occurs only on the thread, never the head.

Our dedicated after-sales team responds promptly to all inquiries. We identify the root cause of any issue, and if necessary, replacement screws are sent free of charge. For major problems, we can dispatch a technician to your site. We accept payments in USD and RMB, and cross-border wire transfers are smooth. We support OEM production and can print your brand on boxes, labels, and bags, keeping your brand secure. We provide a 12-month warranty, covering normal-use issues such as thread stripping, breakage, or severe rust with free replacement.
